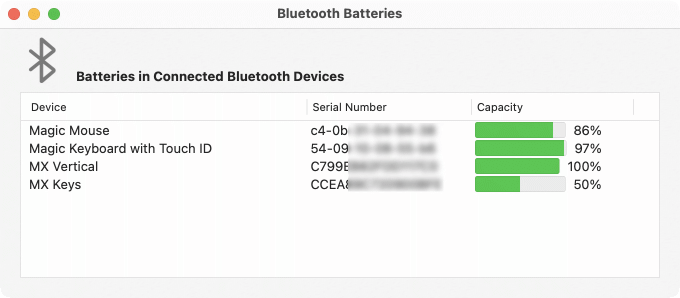

After launching the application, the Overview Window of Battery Monitor will appear. It shows all important operational data of your battery and information about your computer. If you have closed the window, you can reopen it again by selecting the menu item Window > Overview or by pressing the key combination ⌘ + 1.
The window contains the following items:
Battery Controller: The name of the battery unit, or more specifically, its controller hardware. This name is defined by the vendor of the battery. In most cases, it is a part number specifying the micro-controller chip that monitors the unit. In this manual, we use the term battery processor for this chip.
Serial number: The serial number of the battery. Each battery can be uniquely identified by model name and serial number, e.g. when you have multiple battery packs in use, or after a defective battery has been replaced. If the unit is an Apple battery permanently installed in the computer, the actual serial number is the number in parentheses, while the first number specifies the serial or revision number of the controller firmware.
Manufacturer: The name of the manufacturer. Depending on the type of battery, this can be a full name in the clear, or an abbreviation defined by the vendor. Some Apple batteries permanently installed by Apple might suppress their manufacturer name, so it cannot be read out.
Manufacturing date: The date at which this battery unit has been fabricated.
Modern battery units from Apple typically use the Impedance Track™ Battery Gas Gauge Chipset from Texas Instruments as battery processors. These controllers identify with a chip code beginning with “bq20z…”.
Computer model: The name of the computer model on which the application is currently running. The model type is additionally symbolized by a little icon. This feature is only available on computers made by Apple. If the model specification is very long, it might be clipped at the window border. In this case, hold the mouse cursor over the line. The complete model name will be shown as help tag after one second.
Serial number: The serial number of this computer.
Manufacturer: The manufacturer of the computer, as specified during production.
Manufacturing date: The week in which this computer has been assembled.
Voltage: The voltage currently supplied by the battery, or being used to charge it, respectively.
Current (Amperage): The current supplied by the battery at the moment, or being used to charge it. Some batteries represent discharging currents by a negative, charging currents by a positive number. You can influence this by a preference setting.
Power: The power currently being delivered by the battery, or the power it is charged with, respectively.
Temperature: The temperature currently being measured by the battery within the battery unit. The temperature unit can be controlled by a preference setting.
Current charge: The remaining capacity estimated by the monitoring processor of the battery, describing its current charge state in milliampere-hours.
Percentage value: The current charge is also shown as percentage value and as a colored bar. The value can either be set to reflect the true charge level as reported by the battery unit, or to show a value which is designed for presentation to the user. Typical batteries have a specific charge level where they are “almost” full and continued charging to the “really full” level becomes significantly slower. When connecting an AC adapter to an almost full battery, the Mac may decide not to continue charging in order to optimize battery lifetime. To reflect this typical behavior to the user, many applications consider the “almost full” charge level as “100%” already, although it is actually below the true 100% capacity value. You can switch between the two display modes in the preferences panel. A note below the charge level bar will inform you if the “true” display mode is selected. For more information, please also see section “Preferences” later in this chapter.
Estimated remaining time: The remaining run time in hours and minutes for the current charge, estimated based on the current power consumption of the computer. Immediately after power-on, on startup, or wake-up, no estimated value will be available yet, or the value can be very inaccurate. This will change after a few minutes, however, when more measured data becomes available, so the estimate can be determined more precisely. The run time is computed by the battery processor and macOS, not by Battery Monitor. When the computer is connected to an AC adapter, the display automatically changes to Estimated time until full. When full, the line will disappear.
Battery defects: If the system detects one or more technical faults within the battery unit, the number of problems will be reported here. In that case, you can press the button More info next to this line to see the reported failures in detail. Additional notes on this feature are given in the next section.

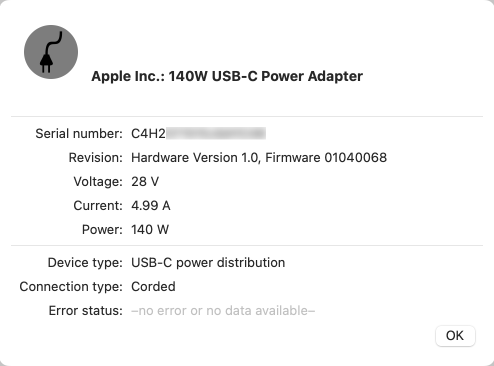

Charger connected: This status display allows you to see if the AC adapter of the computer is currently connected. If the computer receives external power, the display will light in green. In this case you can also press the button More info in the same line to display technical details about the AC adapter. The amount of data available can vary greatly depending on adapter. This can only be guaranteed to work correctly for original Apple-branded adapter units. An example is shown below. If using a power supply with USB-C technology, the amperage value (which controls the power provided and is directly responsible for the charging speed) will be negotiated between power supply, a controller built into the USB-C charger cable, and the computer. In this case, the report window will indicate the current mode of operation.
Charging: This status display will light if the battery is being charged by an attached power supply.
On reserve power: The status light indicates that the computer is running on reserve power. For most versions of macOS, this will mean that you can continue your work at the current power consumption level for approximately 10 minutes until the battery will be dead. This is an estimate of the battery processor and macOS.

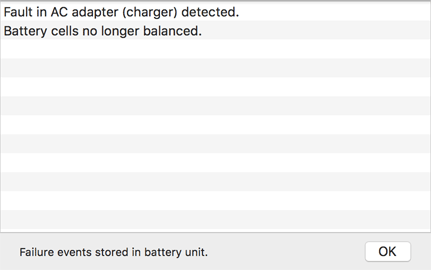

The battery controller keeps an internal error log that stores abnormal operation events recorded in the past. Such event entries are called “permanent battery failures”. Battery Monitor and macOS can decode 14 different types of failures stored in the battery unit. They constitute the defect list shown when you press the More Info button at Battery defects.
Each recorded failure type appears as a line in the battery defect table. Because the battery unit does not contain its own clock, the records have no associated time information and their order may not reflect the actual sequence in which the events occurred. The different types of defect descriptions should be self-explanatory.
Note that an entry recorded in this list does not necessarily mean that the battery is still defective at the moment. It just indicates that a failure situation has occurred during the lifetime of the unit in the past. Usually, only the vendor of the battery unit can reset the battery’s failure log, using special software which is not available to the public. If a battery unit has been repaired or refurbished, connecting new battery cells with a used battery controller, but the service technician has forgotten to clear the permanent failure memory, the defect list could be outdated and therefore be incorrect.

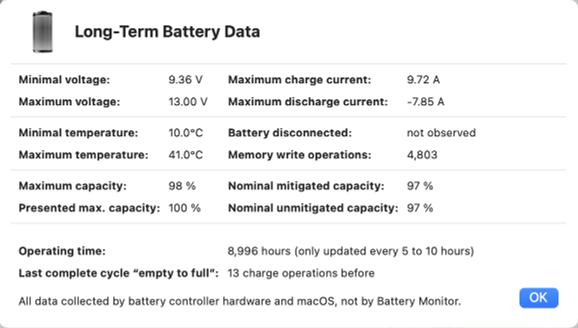

Charge cycles: The number of complete charge and discharge operations that have been performed during the lifetime of this battery. The monitoring processor in the battery unit determines what is considered to be a complete cycle. The number of charge cycles is one of the main factors influencing wear and tear of the battery.
Expected cycles left: This value represents the number of remaining complete charge cycles after which Apple recommends to replace the battery unit by a new one. The percent value additionally represents how much of the expected lifetime has been consumed already.
This value only represents the official replacement policy of Apple and is only valid for original Apple parts, not for battery units of other vendors. It does not take into account the actual health of the battery.

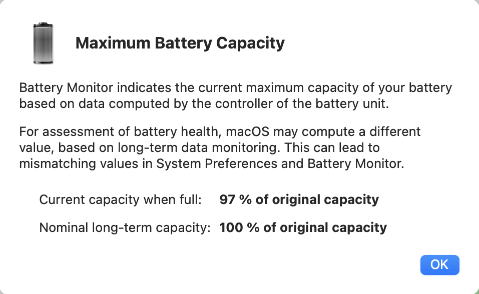

Maximum capacity: The capacity the battery can hold in its current state when it is fully charged. This reading decreases with advancing age. It is an estimate computed by the processor within the battery unit. By calibrating the battery, the estimate will become more accurate. The expected error of the estimate is also shown between parentheses if such information is provided by the battery processor.
Original capacity: This is the maximum capacity this battery has been designed for. The battery had this capacity when it came straight from the factory. The relation between maximum and original capacity is additionally shown as percentage and as colored bar. For brand-new batteries, this value can temporarily grow above 100%. In this case, the battery can store more energy as it has to, according to specifications.
Assessment: The overall assessment of battery health, as defined by macOS. Under normal circumstances it will be Good. In case the battery is deteriorating, additional notes why the battery is no longer considered healthy, may be shown below this line.
Cell voltages: The battery is in fact made up of multiple battery cells, which can be arranged in parallel or serially. These actual batteries and the monitoring processor form the battery unit. Depending on design, each unit can contain between 1 and 4 individual cells. The voltage of each cell is shown numerically and by a colored bar.
Current computers use battery cells based on lithium ion technology. Under load, the voltage of a cell will be between 3.3 and 3.8 volts, depending on cell type. The maximum charge voltage of a fully charged cell is approximately 4.2V. Under optimal circumstances, the behavior of all cells of a battery (including their voltages) should be equal, because they have been constructed identically. A worn-out or defective battery can often be detected by a voltage of one cell differing significantly from the voltages of the other cells, because this cell is no longer capable of performing according to its specifications.
The number of battery cells reflected to the outside may not always match the true physical number of cells. For example, a long-life unit with 6 cells might pretend it is actually composed of 3 cells only. For technical reasons, Apple battery units can only report a number between 1 and 4 available cells to the outside.
Display in the Dock
While Battery Monitor is running, the current charge state of the battery can also be seen within the Dock tile of the application. The state is represented by a combination of level indicator in a battery symbol, an arrow, color and icons. The display is similar to the menu-bar icon for the battery state shown by macOS and should be self-explanatory. An additional numerical percentage value can be added if desired.
As mentioned before, the shown status can either reflect the true physical or the fake user-oriented charge percentage, depending on what display option you have chosen.
In addition to the graphical display, you can open the context menu of the Dock tile to see the charge level and the estimated remaining time as numerical values. Just right-click the icon of Battery Monitor in the Dock.

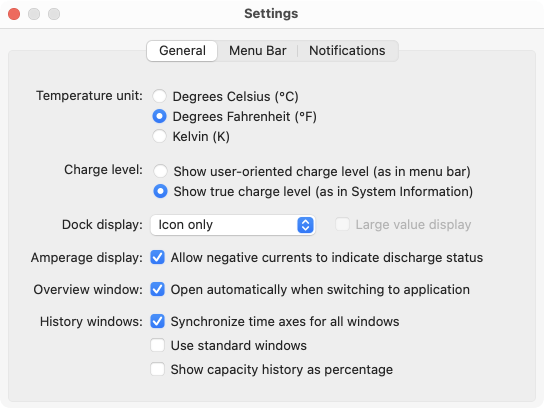

Several aspects of the application can be customized to your personal needs. The settings can be reviewed after selecting the menu item Battery Monitor > Preferences … or by pressing the key combination ⌘ + ,:
Preference settings are divided into two categories. You can use the tabs General and Notifications to switch between them.
Temperature unit: Choose if the temperature should be shown using degrees Celsius, degrees Fahrenheit, or Kelvin.
Charge level: As already mentioned earlier in this chapter, the percentage value to indicate battery charge status can either be set to reflect the true charge level as reported by the battery unit, or to show a value which is designed for presentation to the user. Select either Show user-oriented charge level (as in menu bar) or Show true charge level (as in System Information). Your choice for the display of charge level percentage does not only control the related field in the main window, but also has influence on all other parts of Battery Monitor. The battery icon in the Dock and the notifications that can be sent at specific percentage levels will also use the preferred output mode you have chosen. Please also see the note at the end of this section.
Dock display: By setting a check mark here, the percentage value for the charge level can be shown in text form in the lower right corner of the Dock tile. Note that this can slightly increase power consumption of the App.
Amperage display: If you are using a battery unit which differentiates between charge and discharge states by changing the sign of the amperage value, you will be able to control this by the item Allow negative currents to indicate discharge status. After switching this off, Battery Monitor will use positive current readings only.
Overview window: When the checkmark is set for the item Open automatically when switching to application, the main window of the application will be shown upon each start. This is also the case if you close the window, work with another program, and then return to Battery Monitor, or click the applications’s icon in the Dock. You might like to disable this feature if you mainly use the status display in the Dock and need the window on demand only.
History Windows: Synchronize time axes for all windows: The history windows for capacity, current, and voltage contain pop-up buttons to determine the time intervals you like to see in the graphs. If this option is enabled, you will only have to set the time interval for one history window. All other windows will then automatically switch to the same time frame. With this feature switched off, you can select a different monitoring time for each of the windows.
History Windows: Use standard windows: By default, Battery Monitor uses so-called head-up display windows with a black, transparent background to show history data. If you like to use conventional windows instead, check this item.
History Windows: Show capacity history as percentage: Capacity is measured in milliampere-hours and absolute readings with this unit are shown in the corresponding history graph. If you prefer the display of relative values however, namely as percentage of the current total capacity of your battery, you can enable this alternative view here.
Most applications at the user level, for example Apple’s battery icon in the menu bar, prefer the percentage value for user presentation to indicate the charge level. Because different applications access the battery at different points in time and also use different rounding policies, there can sometimes be a difference of ±1 percentage point. The indicator in the MagSafe connectors of older Apple AC adapters also use the user-oriented “100%” level to switch from orange to green if used with up-to-date Macs and macOS versions. Most applications at the technical level, e.g. the macOS command-line tools for power management or the System Information application reflect the true percentage value, however.
Settings for the Menu Bar (macOS Sierra or later only)
Older versions of OS X and macOS supported a feature to show the estimated remaining runtime of the battery directly in the menu, accessible via the battery icon in the menu bar. Apple removed this feature from this location with macOS 10.12.2 and later versions of the operating system. If you are using one of the affected OS versions, Battery Monitor can be used as a replacement to restore this lost function. This is explained in a separate chapter.
The tab item Menu Bar won’t be available in the preferences window if you are using an operating system older than macOS 10.12 Sierra.

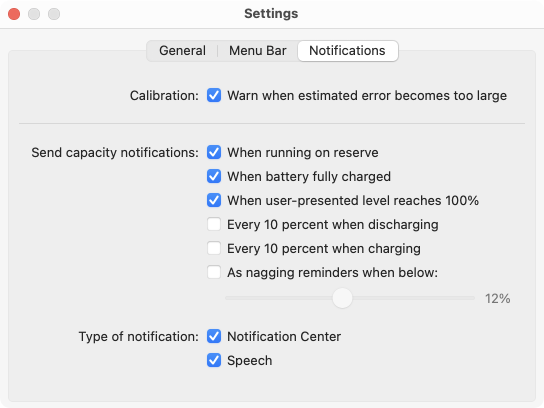

Settings for Notifications
Continuous charge warning: If you operate a portable computer on AC power for an extended period of time although the battery is fully charged or almost fully charged, the lifetime of the battery could be decreased. The battery is not in use, but suffers under a relatively high operating temperature (see also battery care). Battery Monitor can warn you about such long times of “non-use” if you check the option Open panel if AC-powered for extended time. When such a situation is being detected later, a corresponding warning panel will be shown which interrupts you during work and must be confirmed by you.
Calibration: A similar warning can be shown when the battery unit detects that the estimated error of the maximum capacity value becomes too large. Battery capacity cannot be measured directly, it can only be estimated by observing the behavior of the battery during a full discharge/charge cycle. The estimate becomes too inaccurate when a full cycle could not be observed for some time. In this case, the recorded data is outdated and may no longer reflect the true state of battery health. The readings for capacity and remaining run time become less and less accurate. Battery Monitor can warn you when the estimated error exceeds a certain threshold. To do this, set a check mark at Warn when estimated error becomes too large. If you receive such a warning, you should re-calibrate the battery at your earliest convenience.
Send capacity notifications: If required, Battery Monitor can send you a notification after certain charge or discharge conditions have been reached. This notification is unobtrusive and won’t disturb you during work. You can let the application inform you about the following events:
when the battery has been discharged so far that it is running on reserve.
when the battery has been charged to full capacity and the system has actually finished the charging procedure.
when the battery has been charged to the “almost full” level, presented as 100% by user applications.
when discharging, after every 10 percent of capacity have been reached, i.e. 90%, 80%, etc.
when charging, after every 10 percent of capacity have been reached, i.e. 10%, 20%, etc.
macOS will already give you an automatic warning when the battery is running on reserve power. So the option When running on reserve of Battery Monitor should only be activated if you have suppressed the original warning of macOS for some reason.
Battery Monitor can deliver the aforementioned kinds of notifications either via Notification Center or acoustically by voice (or both). You can control this by the check marks at Notification Center and Speech. Note that no notifications will occur if you disable both options. The types of notifications will be explained in more detail in the next section.
Immediately after your computer has woken up from sleep mode, Battery Monitor won’t send notifications for some seconds. Operating system and monitor hardware need a certain time to recover from sleep mode which can temporarily result in wrong status information. Battery Monitor waits until the system has stabilized.
Notifications via Notification Center
Messages shown by the Notification Center of macOS are collected “at the right hand side behind” the screen and be disclosed by the respective icon in the upper right corner of the menu bar. In addition, banners or alert boxes can be shown on the standard screen during normal operation. You can setup the details as desired by using the pane Notifications in the application System Preferences of macOS. After Battery Monitor has sent at least one notification message, System Preferences will offer you the detail settings for the application.
Battery Monitor automatically removes outdated notifications, so you won’t be flooded by charge records from the past which no longer make sense. The Notification Center automatically suppresses notifications while you are working with Battery Monitor in the foreground.
Notifications via Speech
Battery Monitor can also deliver notifications by spoken language. You can control the type of voice and the speed as follows:
If you are using OS X:
Open the application System Preferences.
Navigate to the preference pane Dictation & Speech.
Select the tab item Text to Speech.
Choose your preferred voice with the pop-up button at System Voice and the speed with the slider Speaking Rate. The button Play can be used to test your current settings.
If you are using macOS:
Open the application System Preferences.
Navigate to the preference pane Accessibility.
Select the item Speech in the section Vision in the overview of accessibility functions.
Choose your preferred voice with the pop-up button at System Voice and the speed with the slider Speaking Rate. The button Play can be used to test your current settings.
It is recommended to use the menu item Customize… of the System Voice pop-up button to select one of the voices for your primary language and to activate high-quality speech mode. High-quality output requires an additional download which is available for free from Apple. Battery Monitor automatically tries to find the “best” voice from your list of available voices which matches the language in which the application is currently running.
